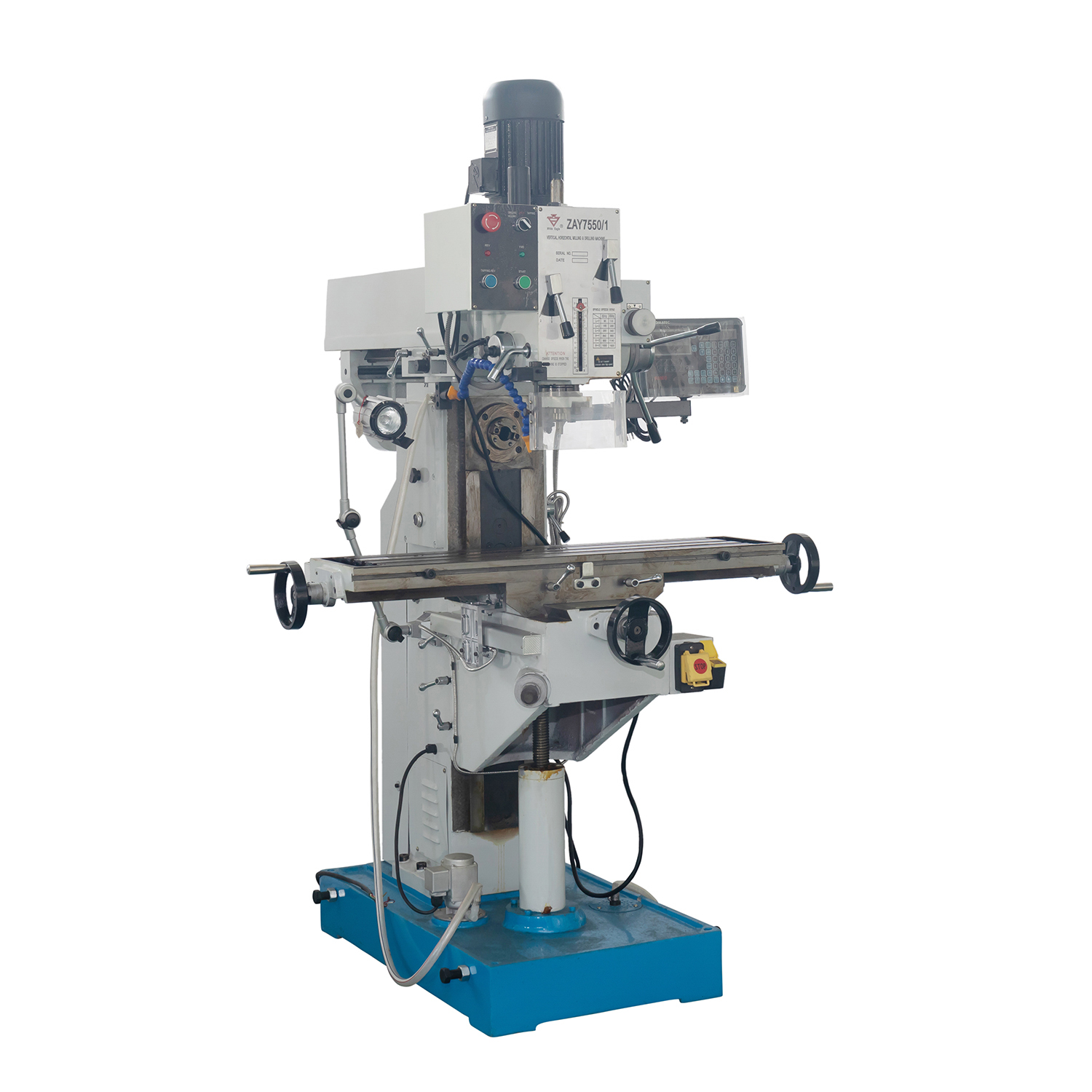

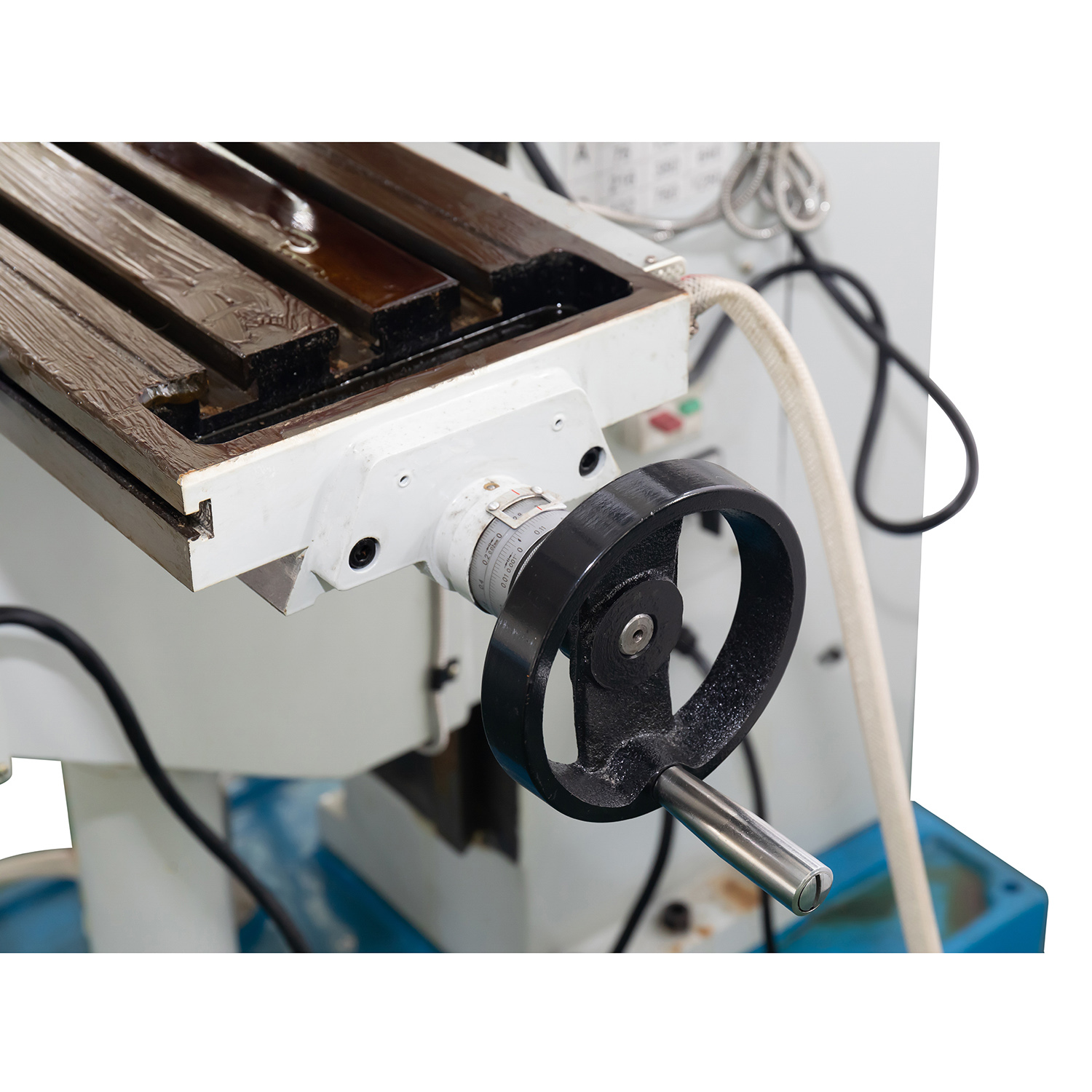

ZAY7550 / 1 ZAY7532 / 1 ZAY7550 ZAY7532
WHITE EAGLE
8459290000
| 技术参数 | SPECIFICATION | MODEL | |||
| ZAY7532/1 | ZAY7540/1 | ZAY7545/1 | ZAY7550/1 | ||
| 最大钻削直径 | Max.drilling capacity | 32mm | 40mm | 45mm | 50mm |
| 最大铣削直径(立铣/卧铣) | Max.milling capacity(end/face) | 25/100mm | 32/100mm | 32/100mm | 32/100mm |
| 主轴箱回转角度(垂直方向) | Swivel angle of headstock(perpendicular) | ±90° | ±90° | ±90° | ±90° |
| 主轴孔锥度(立铣/卧铣) | spindle taper(end/face) | M.T.3 M.T.4 | M.T.4 | M.T.4 | M.T.4 |
| 主轴端至工作台距离 | Distance from spindle nose to worktable surface | 80-480mm | 80-480mm | 80-480mm | 80-480mm |
| 主轴行程 | spindle travel | 130mm | 130mm | 130mm | 130mm |
| 横梁行程 | beam travel | 500mm | 500mm | 500mm | 500mm |
| 主轴转速级数(立铣\卧铣) | step of spindle speed(end/face) | 6\12 | 6\12 | 6\12 | 6\12 |
| 主轴转速范围(立铣/卧铣) 50Hz | Range of spindle speed(end/face) 50HZ | 90-1600 /38-1280 (r/min) | 90-1600 /38-1280 (r/min) | 90-1600 /38-1280 (r/min) | 90-1600 /38-1280 (r/min) |
| 60Hz (4级电机) | 60HZ (4 poles) | 110-1920 /45-1540 (r/min) | 110-1920 /45-1540 (r/min) | 110-1920 /45-1540 (r/min) | 110-1920 /45-1540 (r/min) |
| 主轴自动走刀级数 | Step of spindle auto-feeding(end/face) | 3 | 3 | 3 | 3 |
| 主轴自动走刀量范围 | Range of spindle auto-feeding(end/face) | 0.12 0.18 0.25 | 0.12 0.18 0.25 | 0.12 0.18 0.25 | 0.12 0.18 0.25 |
| 工作台面积 | Worktable size | 800×240mm | 800×240mm | 800×240mm | 1000×240mm |
| 工作台前后行程 | Forward and afterward travel of worktable | 300mm | 300mm | 300mm | 300mm |
| 工作台左右行程 | Left anf right travel of worktable | 585mm | 585mm | 585mm | 785mm |
| 工作台垂直行程 | Vertical travel of worktable | 400mm | 400mm | 400mm | 400mm |
| 主轴轴线至立柱表面最小距离 | Min.distance from spindle axis to column | 290mm | 290mm | 290mm | 290mm |
| 电机功率(立铣/卧铣) | Power(end/face) | 0.75KW(1HP)/1.5KW | 1.1KW(1.5HP)/1.5KW | 1.5KW(2HP)/1.5KW | 1.5KW(2HP)/1.5KW |
| 电压/频率 | Voltage/Frequency | As customer's requirement | As customer's requirement | As customer's requirement | As customer's requirement |
| 冷却泵功率 | Cooling pump power | 0.04KW | 0.04KW | 0.04KW | 0.04KW |
| 净重/毛重 | Net weight/Gross weight | 930kg/1030kg | 933kg/1033kg | 935kg/1035kg | 950kg/1050kg |
| 包装尺寸(长×宽×高) | Packing size | 1020×1350×1850mm | 1020×1350×1850mm | 1020×1350×1850mm | 1220×1350×1850mm |
| 装箱数 | Loading amount | 8pcs/20＇container | 8pcs/20＇container | 8pcs/20＇container | 4pcs/20＇container |
