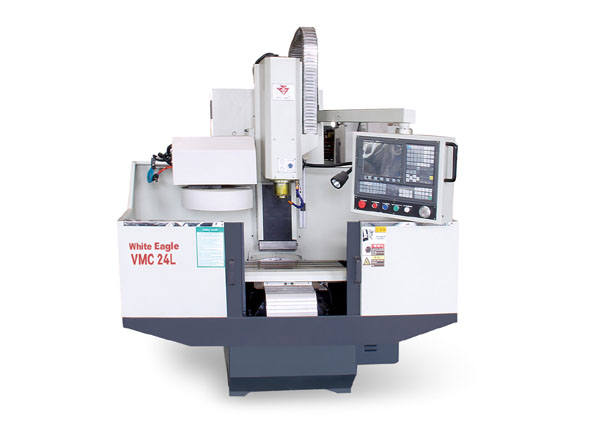

XK7124L / VMC24L VMC25L VMC530L VMC420L
WHITE EAGLE
8459619000
技术参数 | Model | XK7124L/VMC24L | VMC25L | VMC530L | VMC420L |
工作台尺寸(长x宽) | Size of worktable(L×W)(mm) | 810×240 | 1000×250 | 810×320 | 260×800 |
T槽(槽宽*槽数*间距) | T slot(width ×qty×spaces)(mm) | 16×3×60 | 16×3×60 | 14×3×100 | 16×3×63 |
工作台最大承重 | Max loading weight on worktable(kg) | 100 | 120 | 350 | 150 |
X/Y/Z轴行程 | X/Y/Z-Axis travel(mm) | 380/240/370(470Optional) | 535×320×375 | 550×330×450 | 410×260×410 |
主轴鼻端到工作台面距离 | Distance between spindle nose and table(mm) | 60-430 | 50-425 | 100-585 | 90-500 |
主轴中心到立柱的距离 | Distance between spindle center and column(mm) | 309 | 345 | 370 | 315 |
主轴转速 | Spindle speed(r/min) | 100-6000 | 100-4000(6000/8000) | 60-8000 | 60-8000 |
主轴锥度 | Spindle taper | BT30 | BT30 | BT30 | BT30 |
刀具夹紧方式 | Tool clamping way | Pneumatically | Pneumatically | Pneumatically | Pneumatically |
ATC容量(可选) | ATC capacity(optional) | 10 | 10 | 10 | 10 |
切削进给速度 | Feeding speed(mm/min) | 0-2000 | 0-2000 | 1-10000 | 1-10000 |
三轴快速移动速度 | Rapid feeding speed:X,Y,Z axis(m/min) | 15 | 15 | 15 | 15 |
定位精度 | Positioning accuracy(mm) | 0.025 | ±0.008 | ±0.008 | ±0.008 |
重复定位精度 | Repeatability accuracy(mm) | 0.016 | ±0.005 | ±0.008 | ±0.008 |
设定单位 | Min.set unit(mm) | 0.001 | 0.001 | 0.001 | 0.001 |
主电机功率 | Main motor power (kw) | 2.2/3.7 | 1.5/2.2 | 5.5/7.5 | 3.7/5.5 |
进给电机功率 | Feeding motor power:X/Y/Z Axis(kw) | 1.5/1.5/1.5 | 1/1/1 | 1/1/1 | 1/1/1 |
最大刀具尺寸 | Max.size of tool(mm) | Φ60×175 | Φ60×175 | Φ80×250 | Φ60×175 |
刀具最大重量 | Max.loading weight of Tool(kg) | 3.5 | 3.5 | 7 | 3.5 |
机床净重(包括机架) | N.W(include machine stand)(kg) | 1000/1280 | 1700 | 3500 | 2000 |
外形尺寸(长*宽*高) | Overall size(L×W×H)(mm) | 1770×1650×2100 | 1516×1764×1708 | 2000×1750×2100 | 1800×1650×2000 |
包装尺寸(长*宽*高) | Packing size(L×W×H)(mm) | 1900×1620×2480(2580) | 2250×1910×2280 | 2100×1850×2100 | 1900×1750×2000 |
装箱数量 | Loading amount(20") | 6sets/40"GP | 6sets/40"GP | 6sets/40"GP | 6sets/40"GP |
技术参数 | Model | XK7124L/VMC24L | VMC25L | VMC530L | VMC420L |
工作台尺寸(长x宽) | Size of worktable(L×W)(mm) | 810×240 | 1000×250 | 810×320 | 260×800 |
T槽(槽宽*槽数*间距) | T slot(width ×qty×spaces)(mm) | 16×3×60 | 16×3×60 | 14×3×100 | 16×3×63 |
工作台最大承重 | Max loading weight on worktable(kg) | 100 | 120 | 350 | 150 |
X/Y/Z轴行程 | X/Y/Z-Axis travel(mm) | 380/240/370(470Optional) | 535×320×375 | 550×330×450 | 410×260×410 |
主轴鼻端到工作台面距离 | Distance between spindle nose and table(mm) | 60-430 | 50-425 | 100-585 | 90-500 |
主轴中心到立柱的距离 | Distance between spindle center and column(mm) | 309 | 345 | 370 | 315 |
主轴转速 | Spindle speed(r/min) | 100-6000 | 100-4000(6000/8000) | 60-8000 | 60-8000 |
主轴锥度 | Spindle taper | BT30 | BT30 | BT30 | BT30 |
刀具夹紧方式 | Tool clamping way | Pneumatically | Pneumatically | Pneumatically | Pneumatically |
ATC容量(可选) | ATC capacity(optional) | 10 | 10 | 10 | 10 |
切削进给速度 | Feeding speed(mm/min) | 0-2000 | 0-2000 | 1-10000 | 1-10000 |
三轴快速移动速度 | Rapid feeding speed:X,Y,Z axis(m/min) | 15 | 15 | 15 | 15 |
定位精度 | Positioning accuracy(mm) | 0.025 | ±0.008 | ±0.008 | ±0.008 |
重复定位精度 | Repeatability accuracy(mm) | 0.016 | ±0.005 | ±0.008 | ±0.008 |
设定单位 | Min.set unit(mm) | 0.001 | 0.001 | 0.001 | 0.001 |
主电机功率 | Main motor power (kw) | 2.2/3.7 | 1.5/2.2 | 5.5/7.5 | 3.7/5.5 |
进给电机功率 | Feeding motor power:X/Y/Z Axis(kw) | 1.5/1.5/1.5 | 1/1/1 | 1/1/1 | 1/1/1 |
最大刀具尺寸 | Max.size of tool(mm) | Φ60×175 | Φ60×175 | Φ80×250 | Φ60×175 |
刀具最大重量 | Max.loading weight of Tool(kg) | 3.5 | 3.5 | 7 | 3.5 |
机床净重(包括机架) | N.W(include machine stand)(kg) | 1000/1280 | 1700 | 3500 | 2000 |
外形尺寸(长*宽*高) | Overall size(L×W×H)(mm) | 1770×1650×2100 | 1516×1764×1708 | 2000×1750×2100 | 1800×1650×2000 |
包装尺寸(长*宽*高) | Packing size(L×W×H)(mm) | 1900×1620×2480(2580) | 2250×1910×2280 | 2100×1850×2100 | 1900×1750×2000 |
装箱数量 | Loading amount(20") | 6sets/40"GP | 6sets/40"GP | 6sets/40"GP | 6sets/40"GP |
